Screw Pumps |
Use:
loading/offloading, dosing and circulation of light and heavy fuels, lubricating and hydraulic oils, and other self-lubricating non-aggressive fluids. Models: multiple casing models and forms, depending on size
Drive: electric motors, pneumatic motors
Application: land models, shipbuilding
CHARACTERISTICS
Capacity: 3 – 175 m3/h, 16 bar
Pressure: 3 – 175 m3/h, up to 40 bar
Viscosity: 102 – 356 m3/h, up to 10 bar
|
 |
Screw Pumps, type PAK-2N Sizes: 20, 25, 32, 38. Use: Manipulation of heavy and light fuels, hydraulic oils and lubricating oils.
Bearing type: ball bearing
Drive: electric motor, pneumatic motor Output shaft seal: mechanical seal Installation type: horizontal and vertical Characteristics Capacity: 5 – 140 l/min
Pressure: up to 10 bar
Viscosity: 5 – 1500 mm2/s
Add-ons: counterflanges with a weld-on throat |
 |

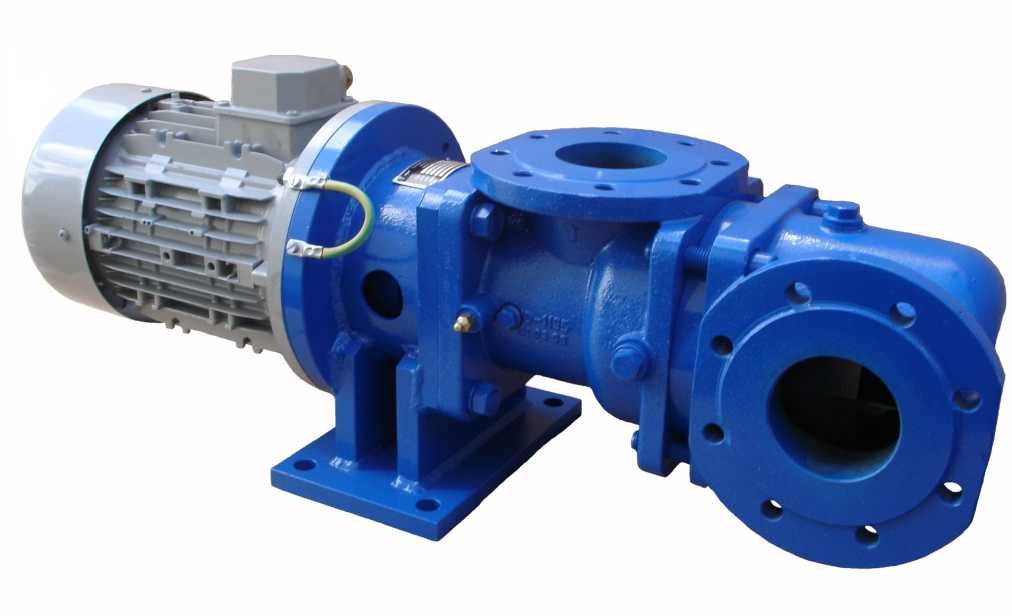

Screw Pumps, type PAS-2N
Sizes: 45, 52, 60
Use:
manipulation of heavy and light fuels, hydraulic oils and lubricating oils.
Bearing type: ball bearing
Drive: electric motor, pneumatic motor
Output shaft seal: mechanical seal
Installation type: horizontal and vertical
CHARACTERISTICS
Capacity: 40 – 650 l/min
Pressure: up to 10 bar
Viscosity: 5 – 1500 mm2/s Add-ons: flanges compliant with DIN 2501, NP16. |
 |
Screw Pumps, type PAHVOk-2, PAHVGOK-2
Sizes: 70, 80
Use:
manipulation of heavy and light fuels, hydraulic oils and lubricating oils.
Bearing type: ball bearing
Drive: electric motor
Output shaft seal: mechanical seal
Installation type: vertical
Model with casing heating for heavy fuels also available.
CHARACTERISTICS
Capacity: 10.8 – 54 m3/h
Pressure: up to 10 bar
Viscosity: 10 – 1500 mm2/s |
|
Screw Pumps, type PAHVK-2N
Sizes: 90, 100, 110, 125
Use:
manipulation of heavy and light fuels, hydraulic oils and lubricating oils.
Bearing type: ball bearing
Drive: electric motor
Output shaft seal: mechanical seal
Installation type: vertical
CHARACTERISTICS
Capacity: 32.4 – 180 m3/h
Pressure: up to 10 bar
Viscosity: 10 – 1500 mm2/s
|
 |

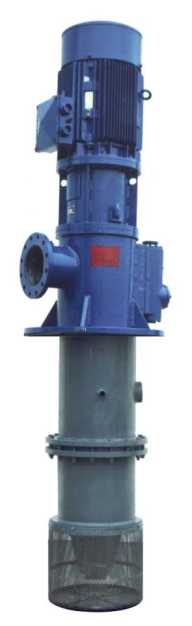

Screw Pumps, type PVPKU-4N, PVPKUD-3N – submersive
Sizes: 100, 110, 125
Use:
manipulation of heavy and light fuels, hydraulic oils and lubricating oils.
Bearing type: ball bearing
Drive: electric motor
Output shaft seal: mechanical seal
Installation type: vertical
CHARACTERISTICS
Capacity: 150 – 420 m3/h
Pressure: up to 5 bar
Viscosity: 10 – 1500 mm2/s |
 |
Screw Pumps, 4N series
Basic types: PASk, PASVk, PAHk, PAHVk, PBHk.
Sizes: 25, 32, 38, 45, 52, 60, 70, 80, 90, 100, 110, 125.
Use:
manipulation of heavy and light fuels, hydraulic oils and lubricating oils.
Bearing type: ball bearing
Drive: electric motor
Output shaft seal: mechanical seal
Installation type: vertical and horizontal; multiple casing variants and models and installation types, depending on the size.
Model with casing heating for heavy fuels also available.
CHARACTERISTICS
Capacity: 0.3 – 180 m3/h
Pressure: up to 40 bar
Viscosity: 10 – 1500 mm2/s |
